Turbochargers GTC Series

Tüm Garrett marka turbo ürünleri, üstün servis işçiliği ve ServisPaşaoğlu garantisi ile...
Ürünler Bilgi Al

Garrett Yeni Ürünler

  • GTX3585 GEN I

    GTX3582R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836047-5002S 62.5mm 82.5mm 56 0.70 68mm 84
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 740902-0004 1.06 T3 V-Band Free Float 84
    740902-0005 0.82 T3 4 bolt Free Float 84
    740902-0006 0.63 T3 4 bolt Free Float 84
    740902-0010 1.06 T3 V-Band Free Float 84
    740902-0011 0.82 T3 V-Band Free Float 84
    740902-0012 0.63 T3 V-Band Free Float 84
    740902-0016 1.06 T4 V-Band Free Float 84
    740902-0017 0.82 T4 V-Band Free Float 84
    740902-0018 0.63 T4 V-Band Free Float 84
    740902-0021 0.61 V-Band V-Band Free Float 84
    GTX3585 GEN I

    GTX3585 GEN I

  • GTX2871 GEN I

    GTX3076R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836042-5003S 836014-5003S 58mm 76.6mm 58 0.60 60mm 84
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 740902-0001 1.06 T3 4 bolt Free Float 84
    740902-0002 0.82 T3 4 bolt Free Float 84
    740902-0003 0.63 T3 4 bolt Free Float 84
    740902-0007 1.06 T3 V-Band Free Float 84
    740902-0008 0.82 T3 V-Band Free Float 84
    740902-0009 0.63 T3 V-Band Free Float 84
    740902-0013 1.06 T4 V-Band Free Float 84
    740902-0014 0.82 T4 V-Band Free Float 84
    740902-0015 0.63 T4 V-Band Free Float 84
    740902-0035 0.83 V-Band V-Band Free Float 84
    740902-0036 0.61 V-Band V-Band Free Float 84
    GTX3076 GEN I

    GTX3076 GEN I

    GTX3076 GEN I

    GTX3076 GEN I

  • GTX2871 GEN I

    GTX3071R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836042-5002S 836014-5002 54.1mm 74.1mm 58 0.60 60mm 84
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 740902-0001 1.06 T3 4 bolt Free Float 84
    740902-0002 0.82 T3 4 bolt Free Float 84
    740902-0003 0.63 T3 4 bolt Free Float 84
    740902-0007 1.06 T3 V-Band Free Float 84
    740902-0008 0.82 T3 V-Band Free Float 84
    740902-0009 0.63 T3 V-Band Free Float 84
    740902-0013 1.06 T4 V-Band Free Float 84
    740902-0014 0.82 T4 V-Band Free Float 84
    740902-0015 0.63 T4 V-Band Free Float 84
    740902-0035 0.83 V-Band V-Band Free Float 84
    740902-0036 0.61 V-Band V-Band Free Float 84
    GTX3071 GEN I

    GTX3071 GEN I

    GTX3071 GEN I

    GTX3071 GEN I

  • GTX2871 GEN I

    GTX2871R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5004S 836012-5004S 49.7mm 67.4mm 55 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76
    GTX2871 GEN I

    GTX2871 GEN I

  • GTX2867 GEN I

    GTX2867R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5005S 836012-5005S 54.1mm 71.4mm 58 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76
  • GTX2860R GEN I

    GTX2860R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5002S 836012-5002S 45.7mm 60mm 58 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76
    GTX2860R GEN I

    GTX2860R GEN I

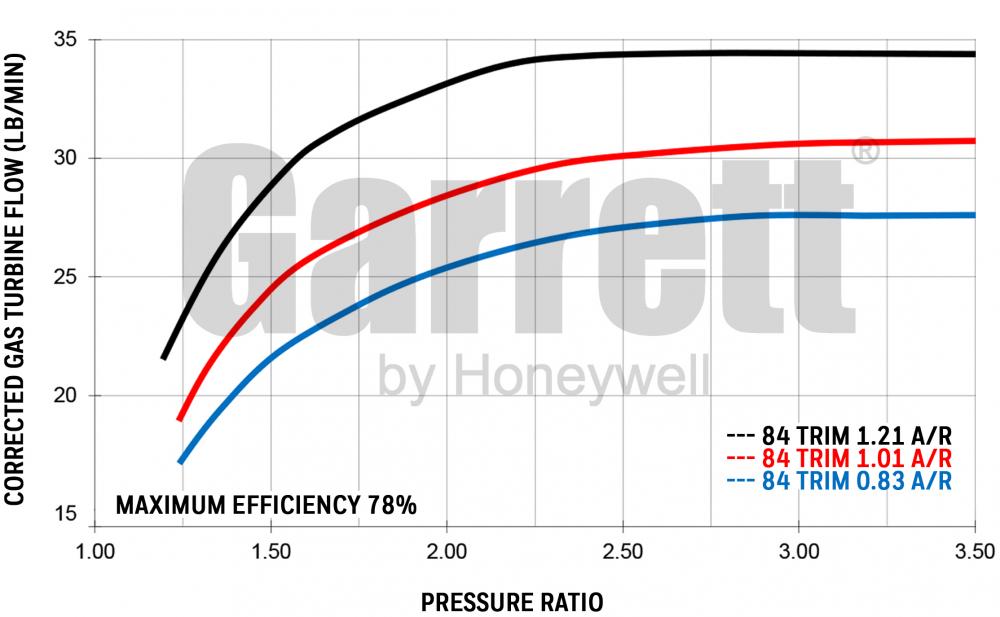

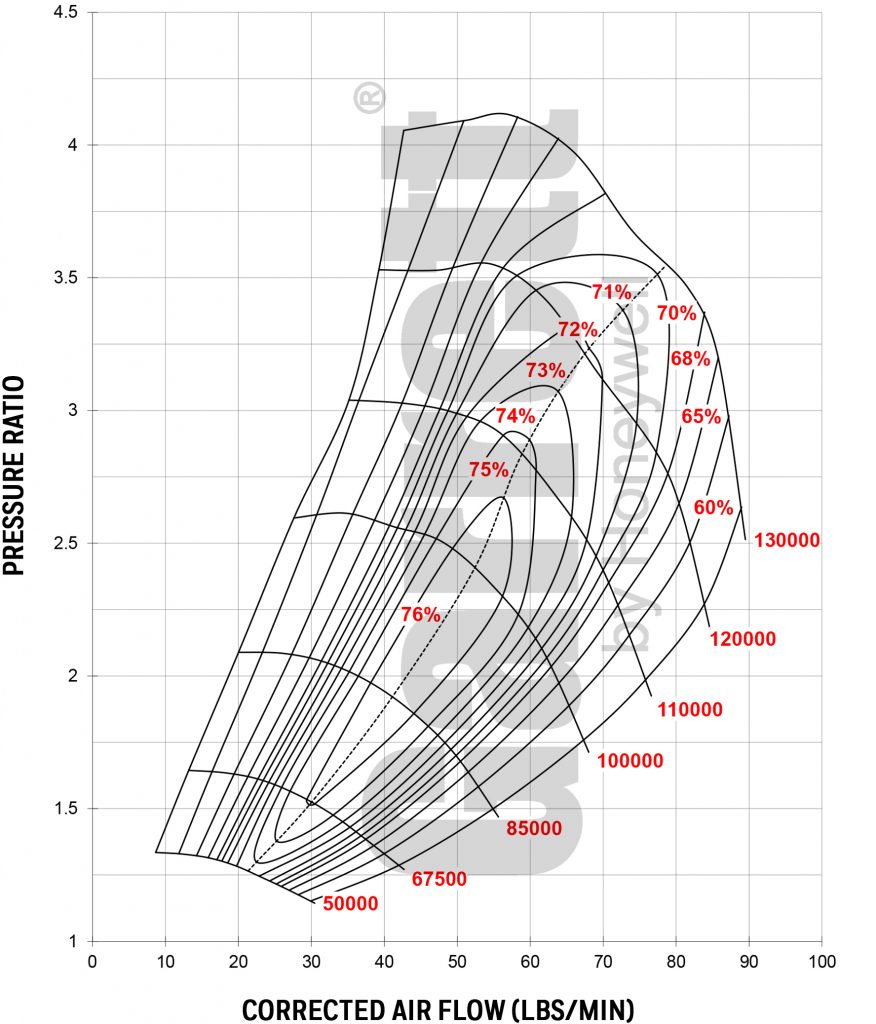

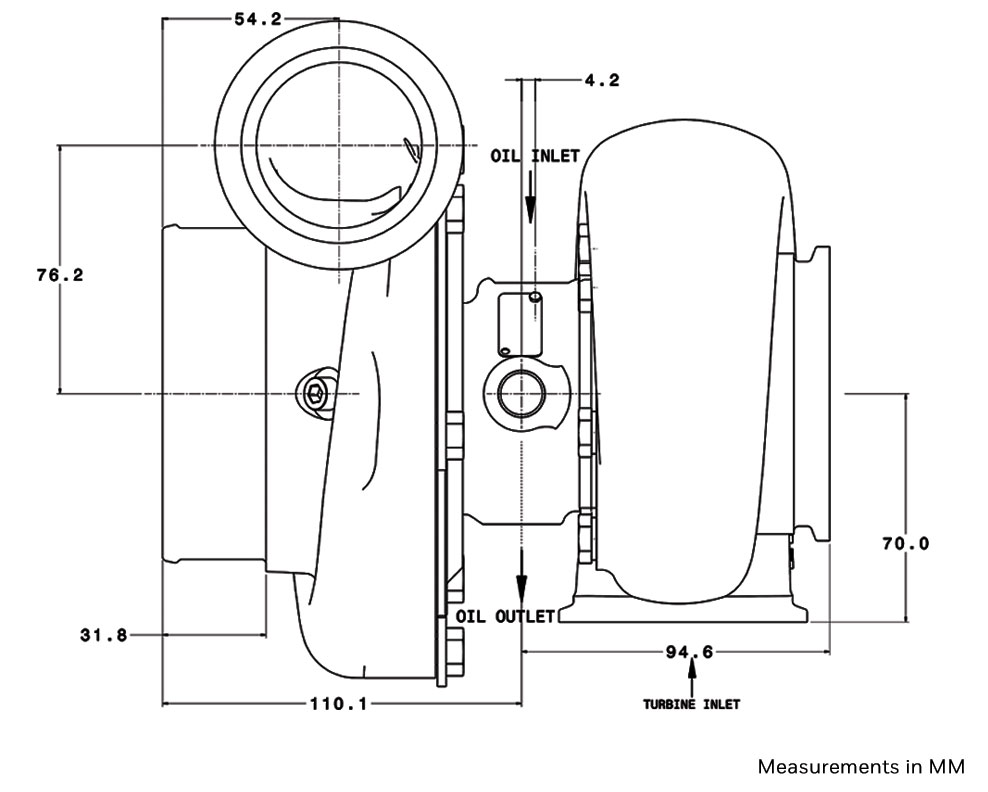

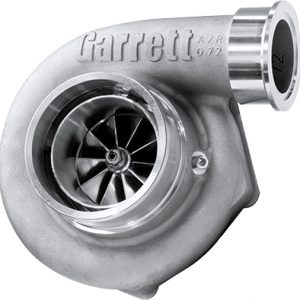

  • GTX3584RS

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3584RS Hose Bead Comp Outlet 67mm 84mm 64 0.72 68mm 62mm 84
    GTX3584RS V-Band Comp Outlet 67mm 84mm 64 0.72 68mm 62mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Hose Bead Comp Outlet 856804-5001S 846098-5001S 740902-0067 0.83 V-Band V-Band Free Float N
    856804-5002S 846098-5001S 740902-0066 1.01 V-Band V-Band Free Float N
    856804-5003S 846098-5001S 740902-0052 1.21 V-Band V-Band Free Float N
    V-Band Comp Outlet 856804-5004S 846098-5002S 740902-0067 0.83 V-Band V-Band Free Float N
    856804-5005S 846098-5002S 740902-0066 1.01 V-Band V-Band Free Float N
    856804-5006S 846098-5002S 740902-0052 1.21 V-Band V-Band Free Float N

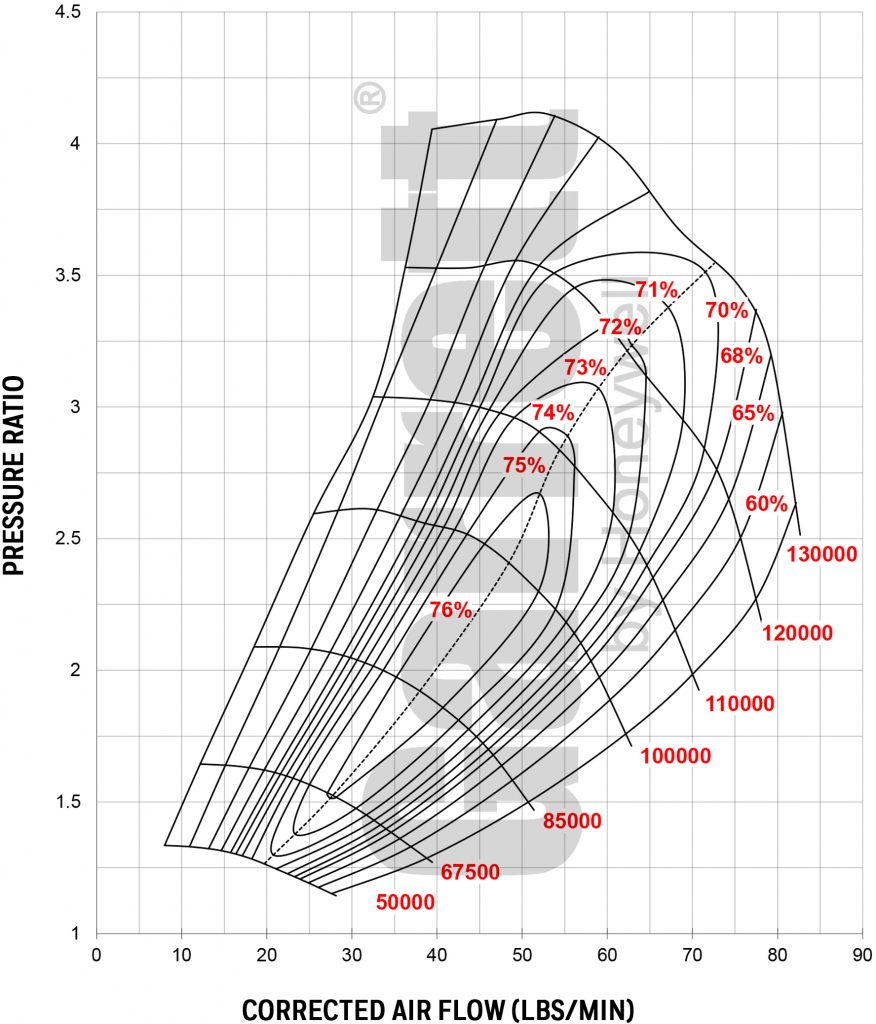

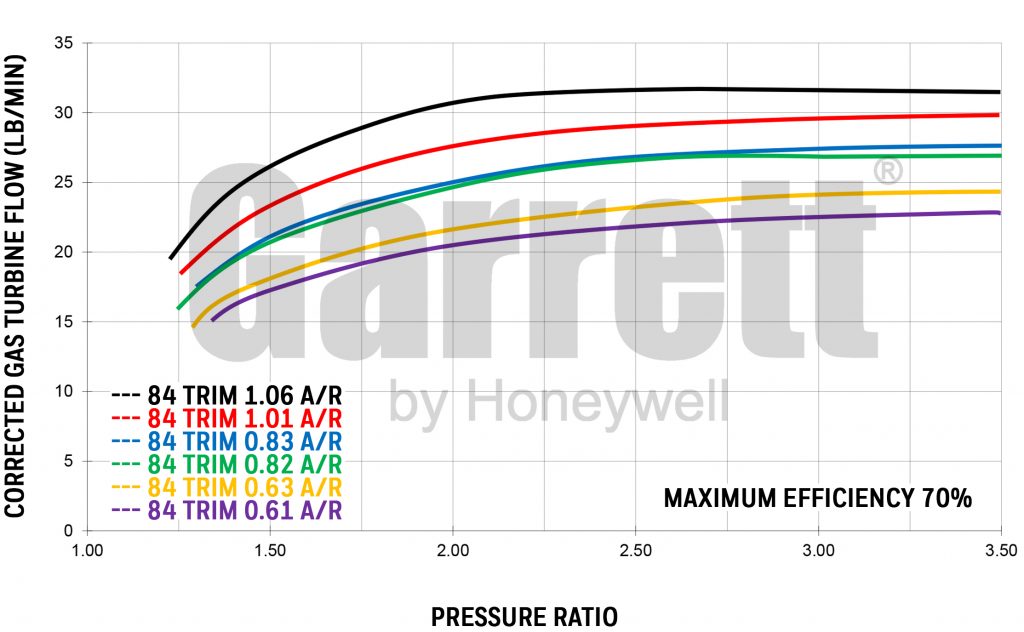

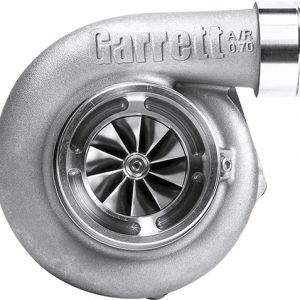

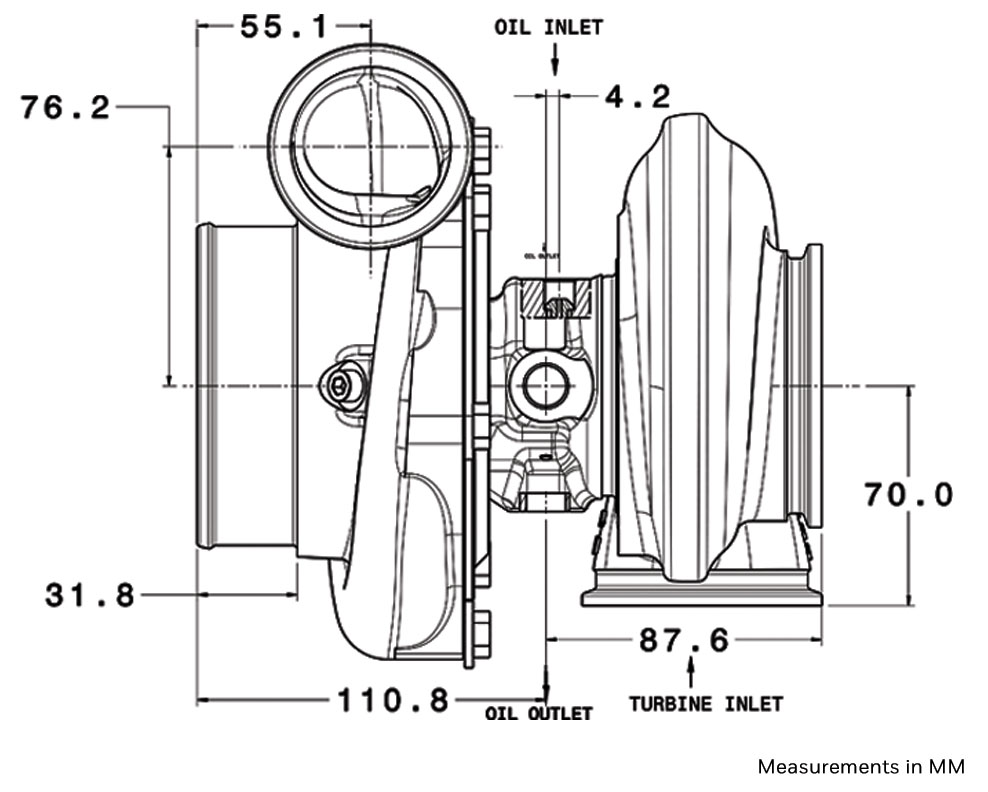

  • GTX3582R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3582R Standard Rotation 66mm 82mm 64 0.70 68mm 62mm 84
    GTX3582R Reverse Rotation 66mm 82mm 64 0.70 68mm 62mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856801-5069S 851154-5004S 740902-0012 0.63 T3 V-Band Free Float N
    856801-5068S 851154-5004S 740902-0011 0.82 T3 V-Band Free Float N
    856801-5067S 851154-5004S 740902-0010 1.06 T3 V-Band Free Float N
    856801-5072S 851154-5004S 740902-0018 0.63 T4 V-Band Free Float N
    856801-5071S 851154-5004S 740902-0017 0.82 T4 V-Band Free Float N
    856801-5070S 851154-5004S 740902-0016 1.06 T4 V-Band Free Float N
    856801-5081S 851154-5004S 740902-0033 0.61 V-Band V-Band Free Float N
    856801-5080S 851154-5004S 740902-0032 0.83 V-Band V-Band Free Float N
    856801-5079S 851154-5004S 740902-0031 1.01 V-Band V-Band Free Float N
    Reverse Rotation Configuration 856803-5004S 844626-5004S 740902-0056 0.61 V-Band V-Band Free Float N
    856803-5005S 844626-5004S 740902-0057 0.83 V-Band V-Band Free Float N
    856803-5006S 844626-5004S 740902-0058 1.01 V-Band V-Band Free Float N

TÜM ÜRÜNLERDE KISA SÜRELİ İNDİRİM

Turbo, GT & GTX Serileri

EN POPÜLER ÜRÜNLER

  • GTX2860R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX2860R 46mm 60mm 58 0.60 54mm 47mm 76
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856800-5003S 849894-5001S 827690-0003 0.64 T25 5 bolt Wastegated N
    856800-5004S 849894-5001S 827690-0004 0.86 T25 5 bolt Wastegated N
    856800-5001S 849894-5001S 827690-0001 0.57 V-Band V-Band Free Float N
    856800-5002S 849894-5001S 827690-0002 0.72 V-Band V-Band Free Float N
  • GTX2867R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX2867R 50mm 67mm 55 0.60 54mm 47mm 76
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856800-5007S 849894-5002S 827690-0003 0.64 T25 5 bolt Wastegated N
    856800-5008S 849894-5002S 827690-0004 0.86 T25 5 bolt Wastegated N
    856800-5005S 849894-5002S 827690-0001 0.57 V-Band V-Band Free Float N
    856800-5006S 849894-5002S 827690-0002 0.72 V-Band V-Band Free Float N
  • GTX3582R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3582R Standard Rotation 66mm 82mm 64 0.70 68mm 62mm 84
    GTX3582R Reverse Rotation 66mm 82mm 64 0.70 68mm 62mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856801-5069S 851154-5004S 740902-0012 0.63 T3 V-Band Free Float N
    856801-5068S 851154-5004S 740902-0011 0.82 T3 V-Band Free Float N
    856801-5067S 851154-5004S 740902-0010 1.06 T3 V-Band Free Float N
    856801-5072S 851154-5004S 740902-0018 0.63 T4 V-Band Free Float N
    856801-5071S 851154-5004S 740902-0017 0.82 T4 V-Band Free Float N
    856801-5070S 851154-5004S 740902-0016 1.06 T4 V-Band Free Float N
    856801-5081S 851154-5004S 740902-0033 0.61 V-Band V-Band Free Float N
    856801-5080S 851154-5004S 740902-0032 0.83 V-Band V-Band Free Float N
    856801-5079S 851154-5004S 740902-0031 1.01 V-Band V-Band Free Float N
    Reverse Rotation Configuration 856803-5004S 844626-5004S 740902-0056 0.61 V-Band V-Band Free Float N
    856803-5005S 844626-5004S 740902-0057 0.83 V-Band V-Band Free Float N
    856803-5006S 844626-5004S 740902-0058 1.01 V-Band V-Band Free Float N
  • GTX3584RS

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3584RS Hose Bead Comp Outlet 67mm 84mm 64 0.72 68mm 62mm 84
    GTX3584RS V-Band Comp Outlet 67mm 84mm 64 0.72 68mm 62mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Hose Bead Comp Outlet 856804-5001S 846098-5001S 740902-0067 0.83 V-Band V-Band Free Float N
    856804-5002S 846098-5001S 740902-0066 1.01 V-Band V-Band Free Float N
    856804-5003S 846098-5001S 740902-0052 1.21 V-Band V-Band Free Float N
    V-Band Comp Outlet 856804-5004S 846098-5002S 740902-0067 0.83 V-Band V-Band Free Float N
    856804-5005S 846098-5002S 740902-0066 1.01 V-Band V-Band Free Float N
    856804-5006S 846098-5002S 740902-0052 1.21 V-Band V-Band Free Float N
