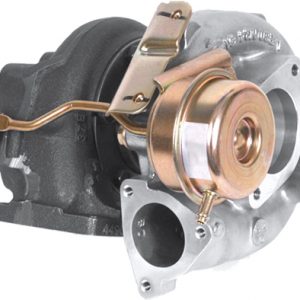

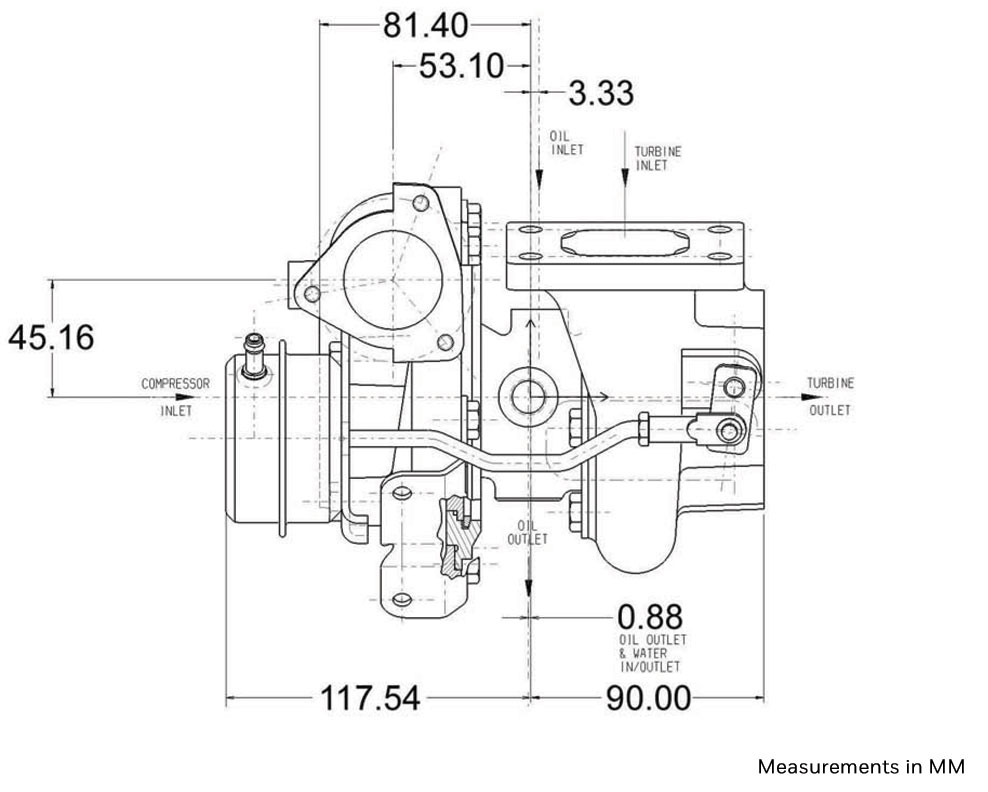

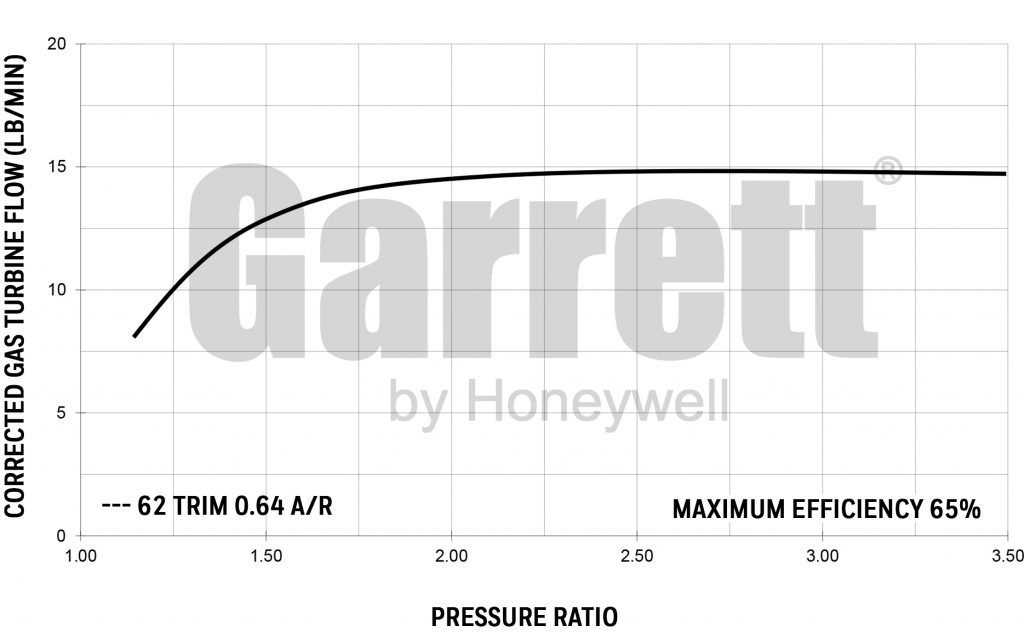

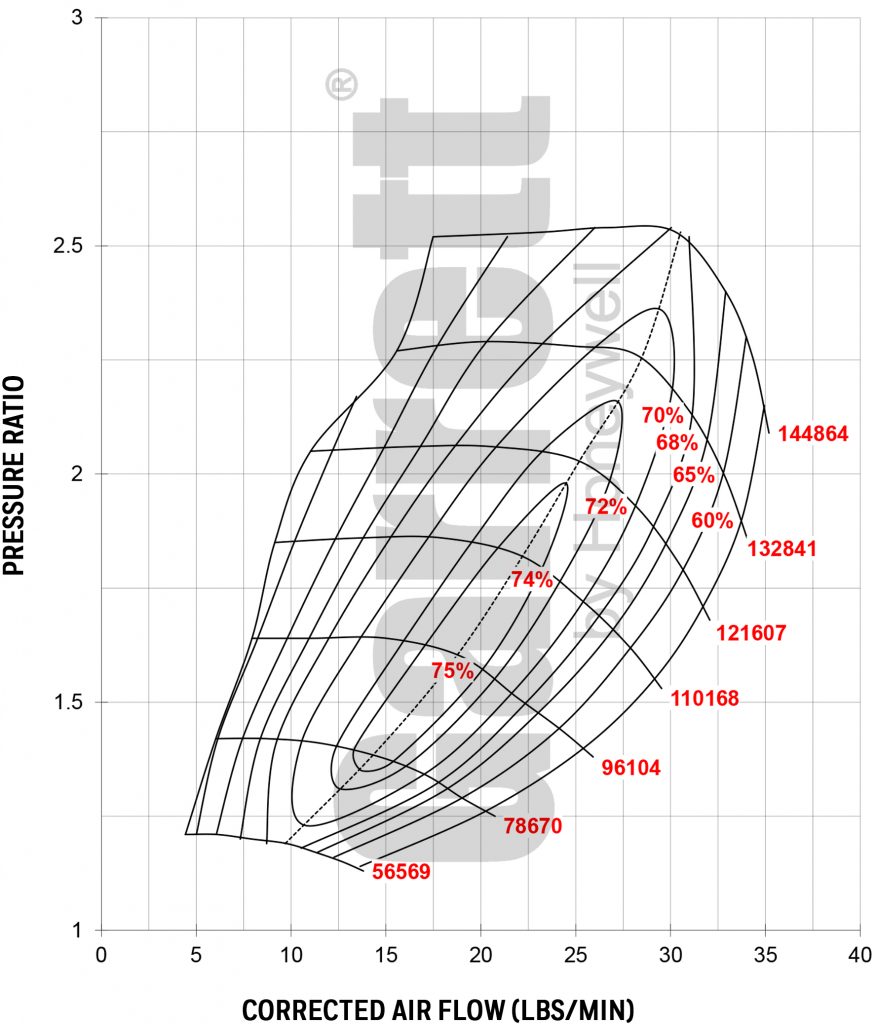

• GT2560R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
    836023-5004S 835995-0003 46mm 60mm 60 0.80 53mm 42mm 62 0.64

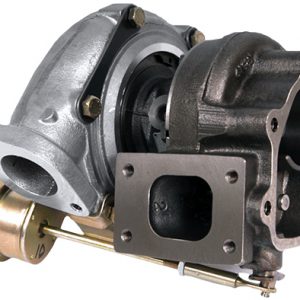

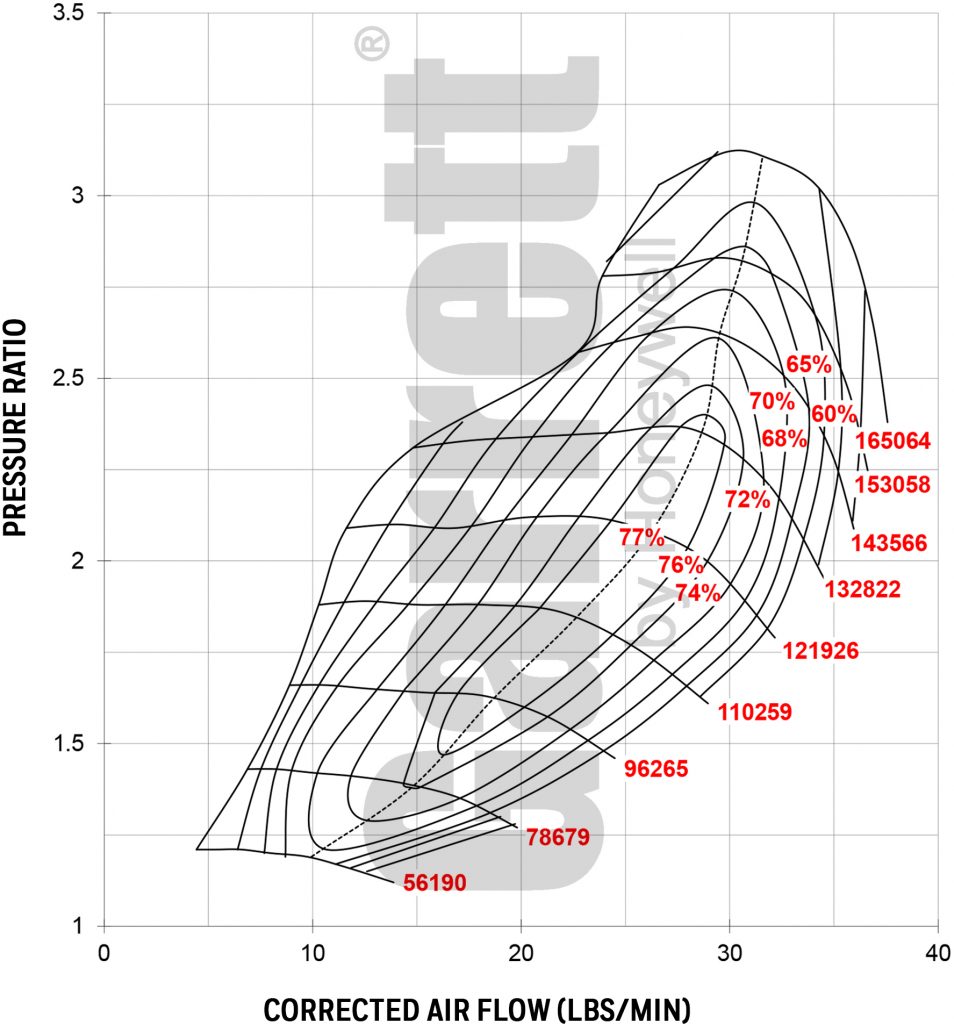

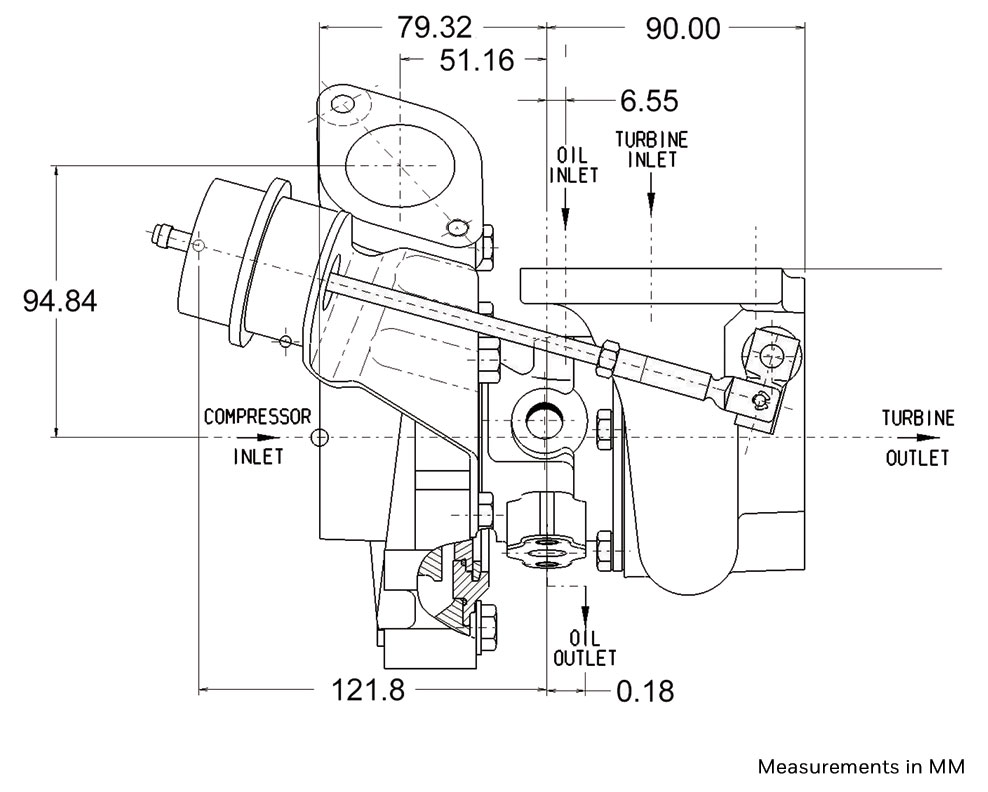

  • GT2860R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
    836026-5005S 835998-0006 47mm 60mm 62 0.60 54mm 47mm 76 0.64
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
    Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76
    827690-0004 0.86 T25 5-Bolt Wastegated N 76
    827690-0001 0.57 V-Band V-Band Free Float N 76
    827690-0002 0.72 V-Band V-Band Free Float N 76

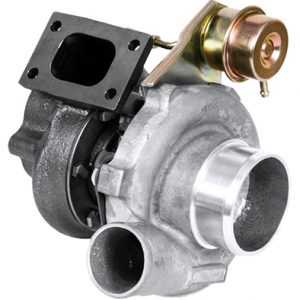

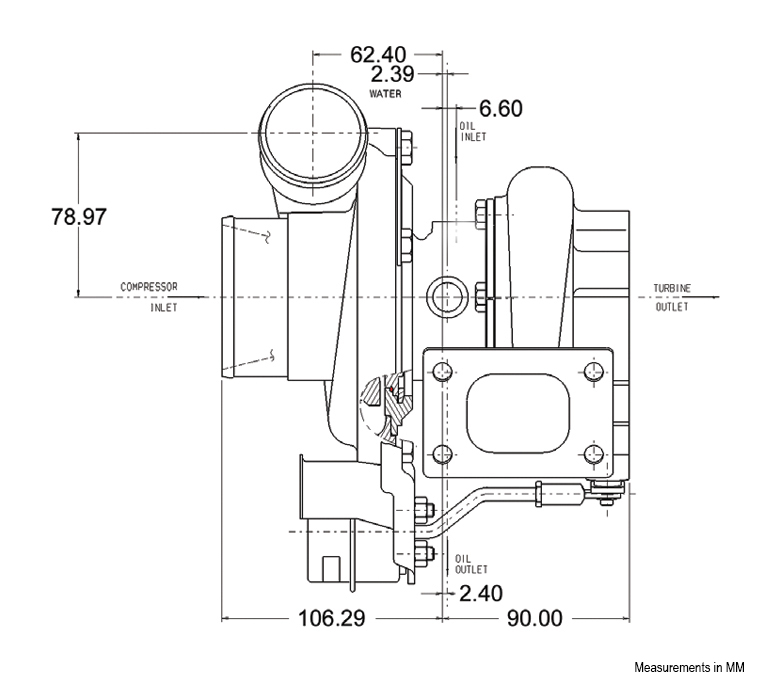

  • GT2860RS

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
    836026-5013S 835998-0007 47mm 60mm 62 0.60 54mm 47mm 76 0.86
    836026-5014S 835998-0007 47mm 60mm 62 0.60 54mm 47mm 76 0.64
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
    Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76
    827690-0004 0.86 T25 5-Bolt Wastegated N 76
    827690-0001 0.57 V-Band V-Band Free Float N 76
    827690-0002 0.72 V-Band V-Band Free Float N 76

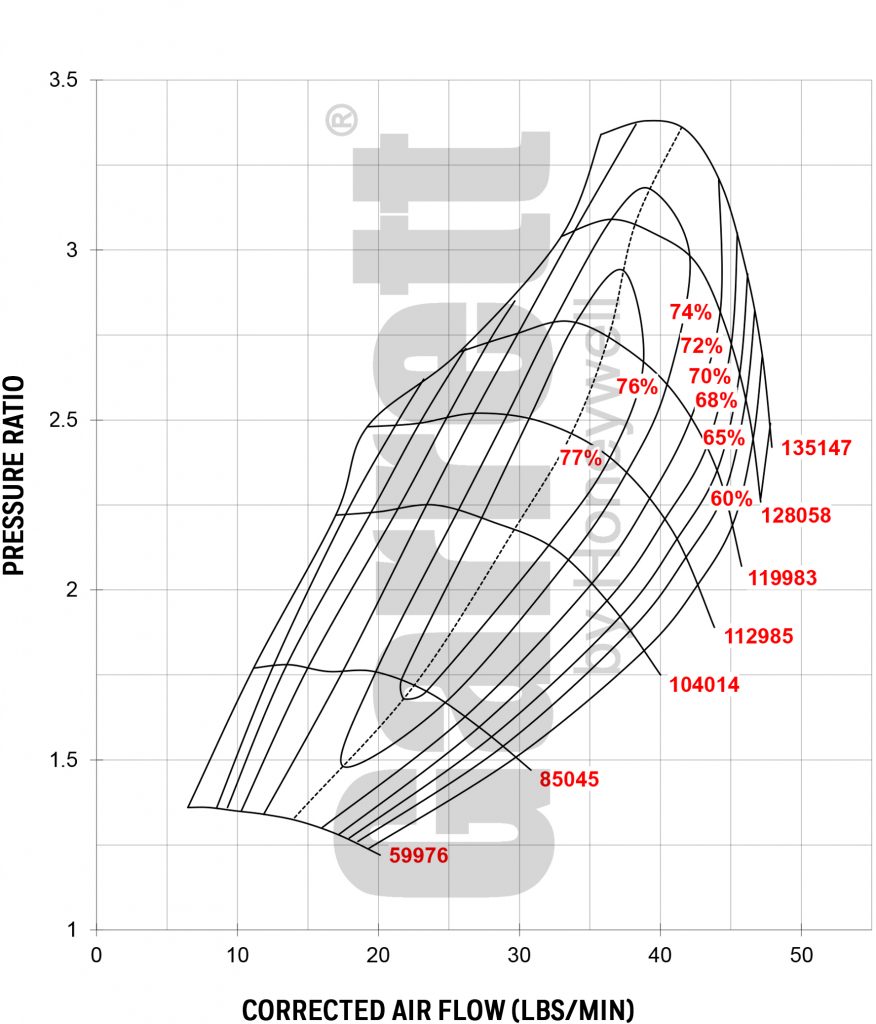

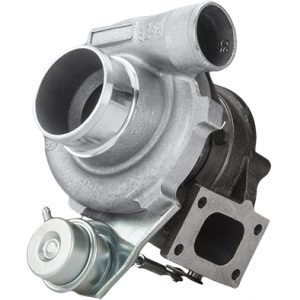

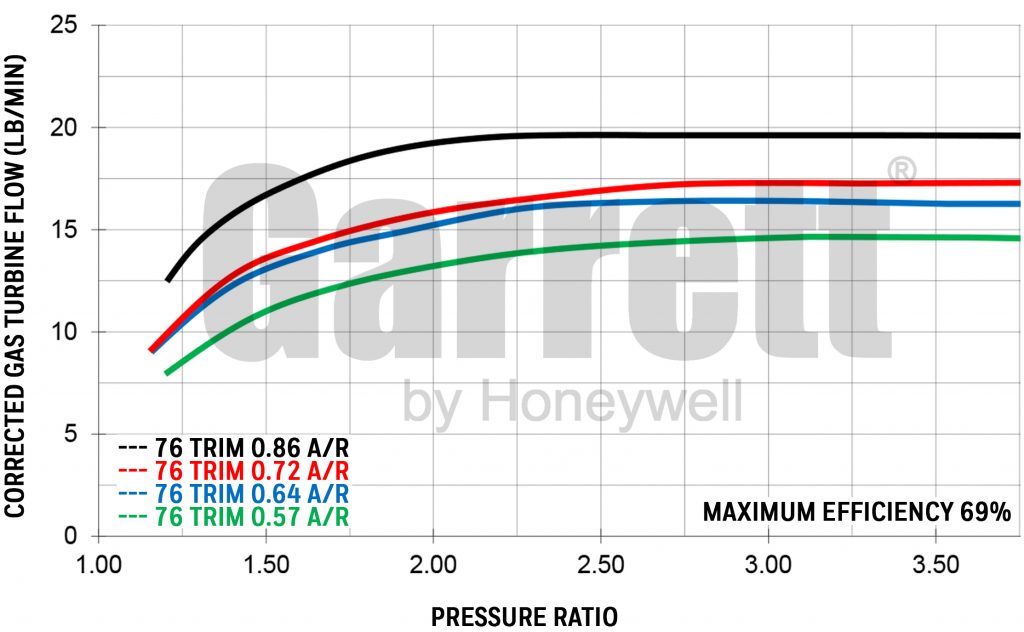

  • GT2871R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
    836026-5020S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.86
    836026-5021S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.64
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
    Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76
    827690-0004 0.86 T25 5-Bolt Wastegated N 76
    827690-0001 0.57 V-Band V-Band Free Float N 76
    827690-0002 0.72 V-Band V-Band Free Float N 76

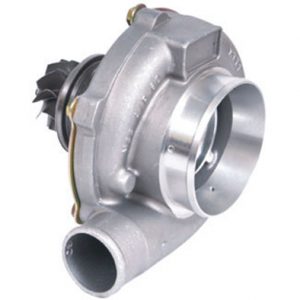

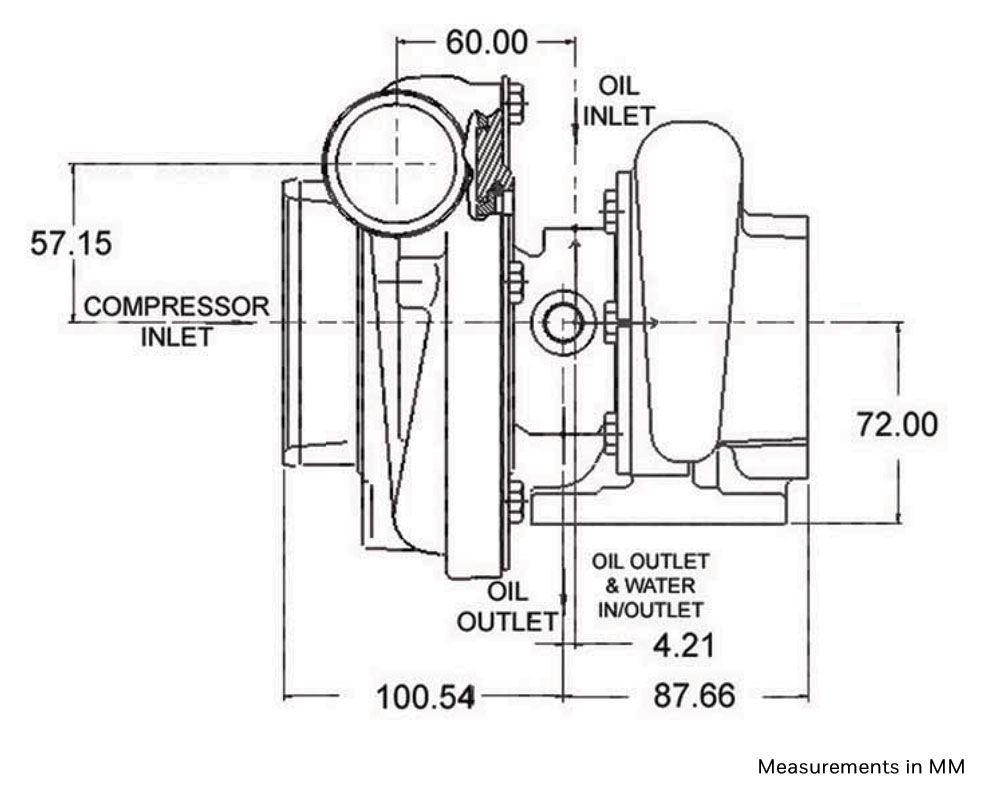

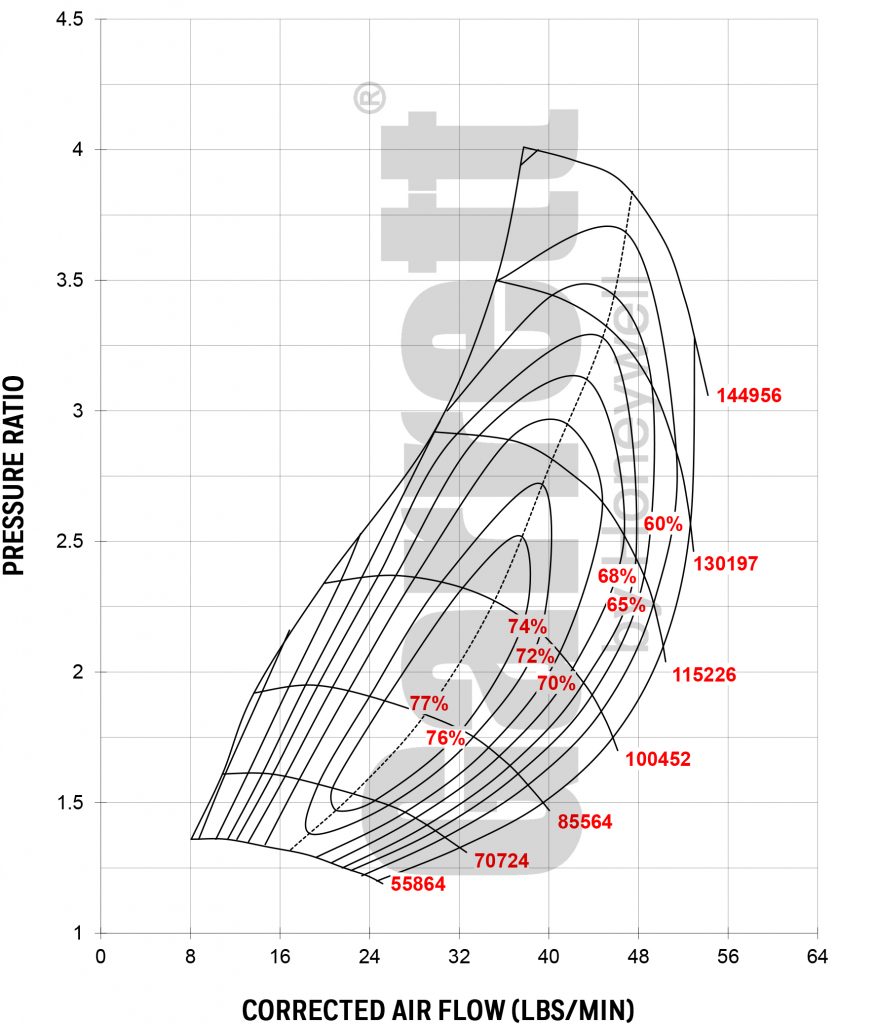

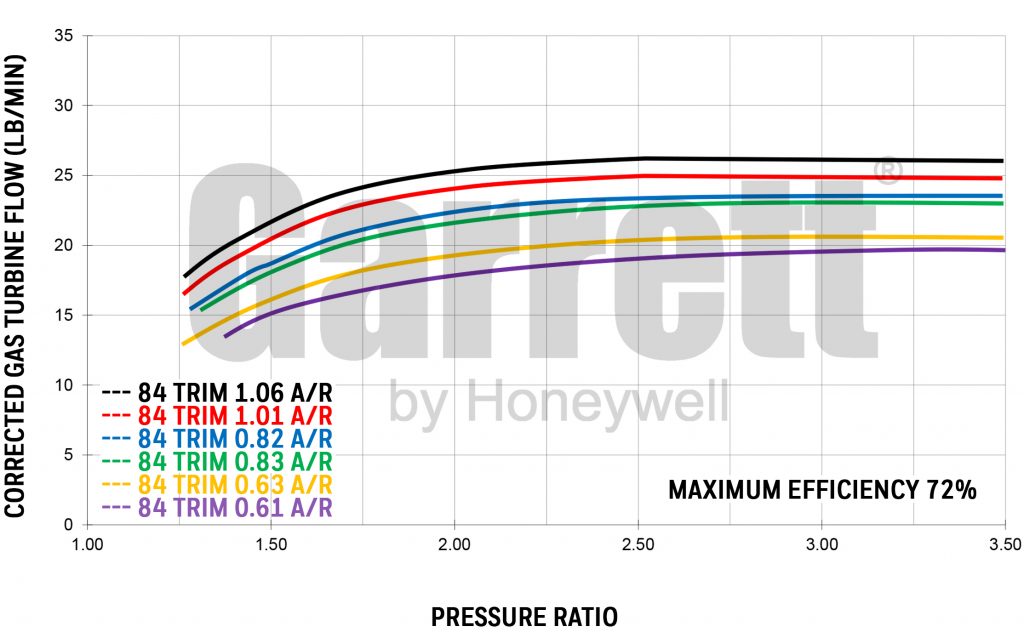

  • GT3076R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim
    836028-5003S 836000-0003 57mm 76mm 56 0.60 60mm 55mm 84
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
    Super Core and Turbine Kit Sold Separately 740902-0009 0.63 T3 V-Band Free Float N 84
    740902-0008 0.82 T3 V-Band Free Float N 84
    740902-0007 1.06 T3 V-Band Free Float N 84
    740902-0036 0.61 V-Band V-Band Free Float N 84
    740902-0035 0.83 V-Band V-Band Free Float N 84
    740902-0034 1.01 V-Band V-Band Free Float N 84
    Wastegated Turbine Assembly does not include bolts, clamps, or actuator Turbine Asbly PN A/R Inlet Outlet Wastegate Divided Trim
    771300-0006 0.63 T3 5 bolt Wastegated N 84
    771300-0005 0.82 T3 5 bolt Wastegated N 84
    771300-0004 1.06 T3 5 bolt Wastegated N 84

  • GTX2860R GEN I

    GTX2860R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5002S 836012-5002S 45.7mm 60mm 58 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76
    GTX2860R GEN I

    GTX2860R GEN I

  • GTX2860R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX2860R 46mm 60mm 58 0.60 54mm 47mm 76
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856800-5003S 849894-5001S 827690-0003 0.64 T25 5 bolt Wastegated N
    856800-5004S 849894-5001S 827690-0004 0.86 T25 5 bolt Wastegated N
    856800-5001S 849894-5001S 827690-0001 0.57 V-Band V-Band Free Float N
    856800-5002S 849894-5001S 827690-0002 0.72 V-Band V-Band Free Float N

  • GTX2867 GEN I

    GTX2867R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5005S 836012-5005S 54.1mm 71.4mm 58 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76

  • GTX2867R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX2867R 50mm 67mm 55 0.60 54mm 47mm 76
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856800-5007S 849894-5002S 827690-0003 0.64 T25 5 bolt Wastegated N
    856800-5008S 849894-5002S 827690-0004 0.86 T25 5 bolt Wastegated N
    856800-5005S 849894-5002S 827690-0001 0.57 V-Band V-Band Free Float N
    856800-5006S 849894-5002S 827690-0002 0.72 V-Band V-Band Free Float N

  • GTX2871 GEN I

    GTX2871R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5004S 836012-5004S 49.7mm 67.4mm 55 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76
    GTX2871 GEN I

    GTX2871 GEN I

  • GTX2871 GEN I

    GTX3071R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836042-5002S 836014-5002 54.1mm 74.1mm 58 0.60 60mm 84
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 740902-0001 1.06 T3 4 bolt Free Float 84
    740902-0002 0.82 T3 4 bolt Free Float 84
    740902-0003 0.63 T3 4 bolt Free Float 84
    740902-0007 1.06 T3 V-Band Free Float 84
    740902-0008 0.82 T3 V-Band Free Float 84
    740902-0009 0.63 T3 V-Band Free Float 84
    740902-0013 1.06 T4 V-Band Free Float 84
    740902-0014 0.82 T4 V-Band Free Float 84
    740902-0015 0.63 T4 V-Band Free Float 84
    740902-0035 0.83 V-Band V-Band Free Float 84
    740902-0036 0.61 V-Band V-Band Free Float 84
    GTX3071 GEN I

    GTX3071 GEN I

    GTX3071 GEN I

    GTX3071 GEN I

  • GTX3071R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3071R Standard Rotation 54mm 71mm 58 0.60 60mm 55mm 84
    GTX3071R Reverse Rotation 54mm 71mm 58 0.60 60mm 55mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856801-5006S 851154-5002S 740902-0009 0.63 T3 V-Band Free Float N
    856801-5005S 851154-5002S 740902-0008 0.82 T3 V-Band Free Float N
    856801-5004S 851154-5002S 740902-0007 1.06 T3 V-Band Free Float N
    856801-5018S 851154-5002S 740902-0036 0.61 V-Band V-Band Free Float N
    856801-5017S 851154-5002S 740902-0035 0.83 V-Band V-Band Free Float N
    856801-5016S 851154-5002S 740902-0034 1.01 V-Band V-Band Free Float N
    Wastegated Turbine Assembly PN does not include bolts, clamps, or actuator 856801-5021S 851154-5002S 771300-0006 0.63 T3 5 bolt Wastegated N
    856801-5020S 851154-5002S 771300-0005 0.82 T3 5 bolt Wastegated N
    856801-5019S 851154-5002S 771300-0004 1.06 T3 5 bolt Wastegated N
    Reverse Rotation Configuration Assembly Kit PN Super Core PN Turbine Asbly PN A/R Inlet Outlet Wastegate Divided
    856802-5001S 844621-5003S 740902-0053 0.61 V-Band V-Band Free Float N
    856802-5002S 844621-5003S 740902-0054 0.83 V-Band V-Band Free Float N
    856802-5003S 844621-5003S 740902-0055 1.01 V-Band V-Band Free Float N
