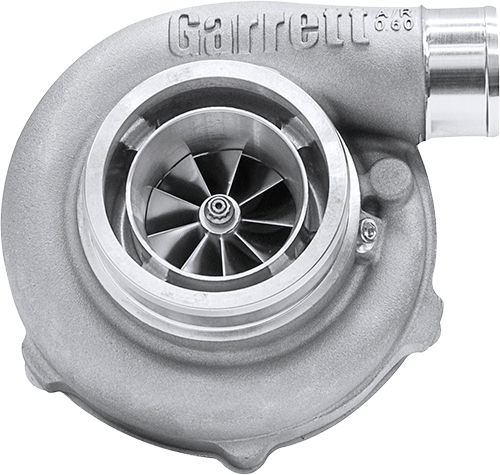

GTX3076R GEN II

Horsepower:

400 – 750

Displacement:

1.8L – 3.0L

Kategoriler:
REFERENCE
Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX3076R Standard Rotation 58mm 76mm 58 0.60 60mm 55mm 84
GTX3076R Reverse Rotation 58mm 76mm 58 0.60 60mm 55mm 84
Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856801-5027S 851154-5001S 740902-0009 0.63 T3 V-Band Free Float N
856801-5026S 851154-5001S 740902-0008 0.82 T3 V-Band Free Float N
856801-5025S 851154-5001S 740902-0007 1.06 T3 V-Band Free Float N
856801-5039S 851154-5001S 740902-0036 0.61 V-Band V-Band Free Float N
856801-5038S 851154-5001S 740902-0035 0.83 V-Band V-Band Free Float N
856801-5037S 851154-5001S 740902-0034 1.01 V-Band V-Band Free Float N
Wastegated Turbine Assembly PN does not include bolts, clamps, or actuator 856801-5042S 851154-5001S 771300-0006 0.63 T3 5 bolt Wastegated N
856801-5041S 851154-5001S 771300-0005 0.82 T3 5 bolt Wastegated N
856801-5040S 851154-5001S 771300-0004 1.06 T3 5 bolt Wastegated N
Reverse Rotation Configuration Assembly Kit PN Super Core PN Turbine Asbly PN A/R Inlet Outlet Wastegate Divided
856802-5004S 844621-5004S 740902-0053 0.61 V-Band V-Band Free Float N
856802-5005S 844621-5004S 740902-0054 0.83 V-Band V-Band Free Float N
856802-5006S 844621-5004S 740902-0055 1.01 V-Band V-Band Free Float N
