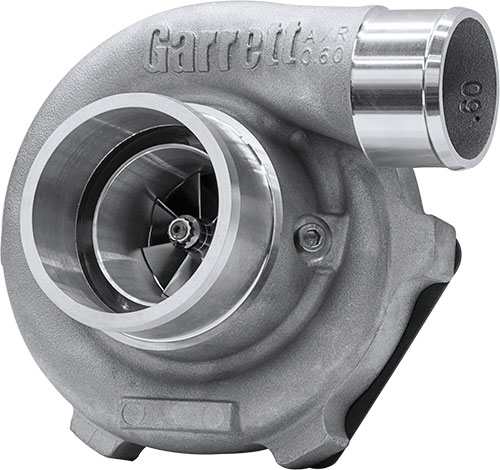

GTX2860R GEN II

Horsepower:

200 – 475

Displacement:

1.4L – 2.5L

Kategoriler:
REFERENCE
Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX2860R 46mm 60mm 58 0.60 54mm 47mm 76
Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856800-5003S 849894-5001S 827690-0003 0.64 T25 5 bolt Wastegated N
856800-5004S 849894-5001S 827690-0004 0.86 T25 5 bolt Wastegated N
856800-5001S 849894-5001S 827690-0001 0.57 V-Band V-Band Free Float N
856800-5002S 849894-5001S 827690-0002 0.72 V-Band V-Band Free Float N

Seri

GTX GEN II
