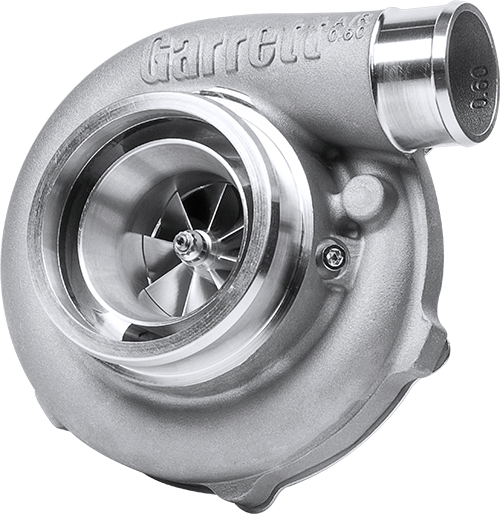

GTX3071R GEN II

Horsepower:

340 – 650

Displacement:

1.8L – 3.0L

Kategoriler:
REFERENCE
Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX3071R Standard Rotation 54mm 71mm 58 0.60 60mm 55mm 84
GTX3071R Reverse Rotation 54mm 71mm 58 0.60 60mm 55mm 84
Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856801-5006S 851154-5002S 740902-0009 0.63 T3 V-Band Free Float N
856801-5005S 851154-5002S 740902-0008 0.82 T3 V-Band Free Float N
856801-5004S 851154-5002S 740902-0007 1.06 T3 V-Band Free Float N
856801-5018S 851154-5002S 740902-0036 0.61 V-Band V-Band Free Float N
856801-5017S 851154-5002S 740902-0035 0.83 V-Band V-Band Free Float N
856801-5016S 851154-5002S 740902-0034 1.01 V-Band V-Band Free Float N
Wastegated Turbine Assembly PN does not include bolts, clamps, or actuator 856801-5021S 851154-5002S 771300-0006 0.63 T3 5 bolt Wastegated N
856801-5020S 851154-5002S 771300-0005 0.82 T3 5 bolt Wastegated N
856801-5019S 851154-5002S 771300-0004 1.06 T3 5 bolt Wastegated N
Reverse Rotation Configuration Assembly Kit PN Super Core PN Turbine Asbly PN A/R Inlet Outlet Wastegate Divided
856802-5001S 844621-5003S 740902-0053 0.61 V-Band V-Band Free Float N
856802-5002S 844621-5003S 740902-0054 0.83 V-Band V-Band Free Float N
856802-5003S 844621-5003S 740902-0055 1.01 V-Band V-Band Free Float N
